Tours verticaux de grandes dimensions, SÉRIE AP.

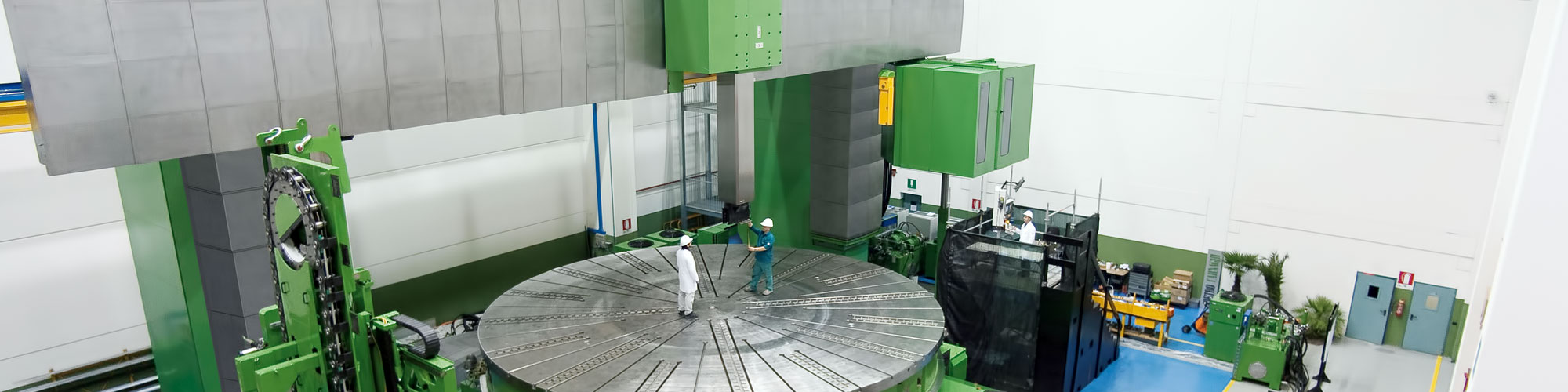

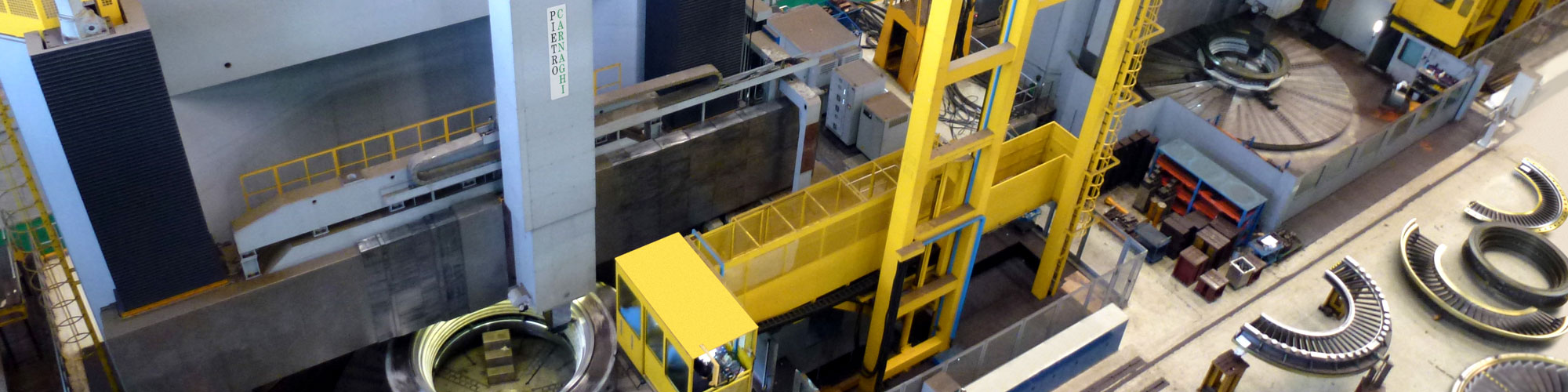

Ils sont caractérisés par une structure à deux montants pour les usinages de grandes dimensions, jusqu’à un diamètre pièce de 14 mètres.

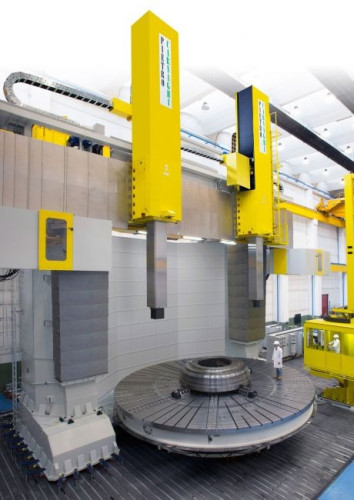

La structure est constituée d’un siège recevant le plateau, la boite de vitesses et des montants, avec glissières pour le déplacement de la traverse mobile.
La forme et les dimensions de cette dernière sont largement suffisantes pour supporter les conditions de travail les plus difficiles.
Sur la partie avant deux rangées de glissières horizontales supportent le chariot porte-outils vertical lors de son déplacement horizontal (au moyen de poches hydrostatiques) et la distance entre la glissière supérieure et la glissière inférieure est dimensionnée de façon à garantir les plus hautes performances de coupe possibles.
Les structures sont conçues à l’aide de l’analyse par éléments finis (FEM) et sont soumises à des cycles de stabilisation thermique de distension.
|Max. turning diameter||mm||7000||8000||9000||10000||12000||13000||14000|
|Max. allowable weight||t||250||250||350||350||350||500||500|
|Turning power||kW||120 - (180) - (300)|
|Turning height: fixed crossrail||mm||1500|
|Turning height: movable crossrail||mm||3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000|
|Ram section||mm||(400 x 400) - (500 x 500) - (600 x 600)|
|Ram stroke Z axis||mm||(2000) - (2500) - 3000 - 3500 - 4000|
|Milling power||kW||60 / 71 / 100|
|Max. RPM||rpm||2500 - 3000 - (6000)|
|Rapid feeds X-Z-axes||mm./min||15000|
