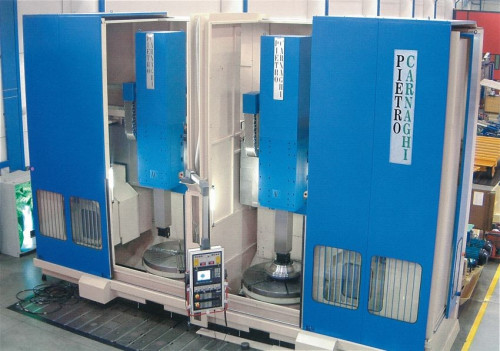

The turning and milling vertical lathe Pietro Carnaghi model ATF has been designed with a very compact termo-symmetrical structure with one single column assembled on the machine base.
ATF lathe can be equipped with a double pallet system, rotating 0 – 180°, useful to make a part centering on the external pallet, while with the internal pallet is in a machining process.
Compactness, rigidity, and extreme precision make the pallet ATF an ideal solution for machining of the most precise mechanical components.
|ATT 15||ATT 24|
|Max. turning diameter||mm||1500||2400|
|Table - Pallet diameter||mm||1250 / 1400||2000 / 2200|
|Max. allowable weight||t||12||20|
|Standard RPM||RPM||4,4 - 650 / 1,1 - 400||0,7 - 275 / 0,7 - 250|
|Turning power||kw||60 - (100)|
|Turning height||mm||750 - (1000) - (1200)|
|Ram section||mm||250 x 250|
|Ram stroke Z axis||mm||1000 - (1250)|
|Max. RPM||RPM||3000 - (6000)|
|Rapid feeds X-Z-axes||mm/min||30000|
